Schuco Casement Door

Elegant frames and contemporary finishes

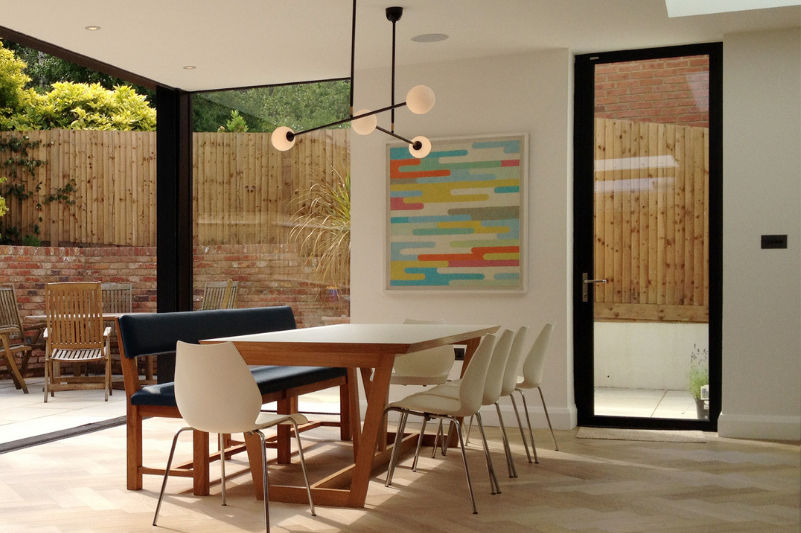

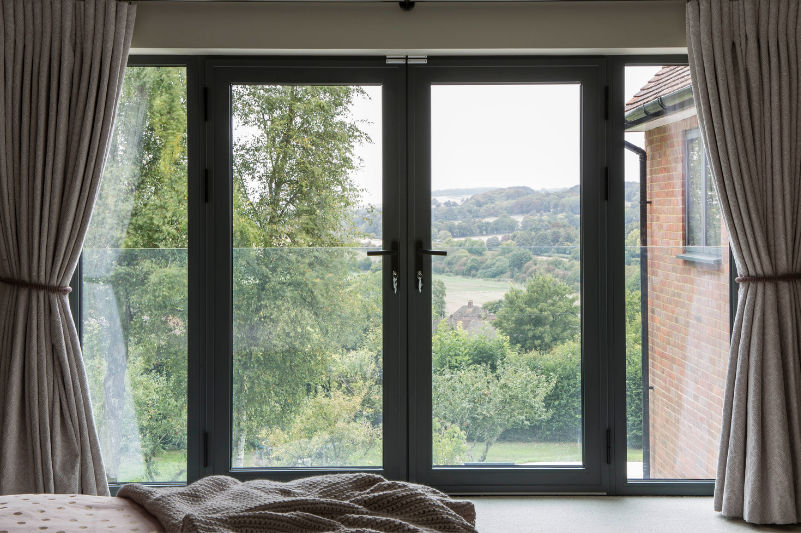

The Schuco Casement Door can be fabricated into a range of configurations including a single opening door, a double door and with fixed sidelights. The elegant aluminium frames create a contemporary finish whilst the inbuilt thermal break and insulated glass ensures high levels of performance. The aluminium frame can be finished in a wide range of RAL colours to produce the required design. This casement door can be used in conjunction with any of our other aluminium products for a full glazing package.

Sightline: 147mm across vent and frame (single) / 201mm (double)

Thermal Insulation: Uw values from 1.8 W/m2K

Max Opening Size: 1.4m wide x 3m high for single door

Configurations: single door, double door, with sidelights

Glass Specification: glass thickness 25-34mm, maximum weight 150kg per unit

Weather Protection: fully tested, air (2), water (5A), wind (C3)

Pair these aluminium casement doors with the Sieger Balustrade System to create Juliet Balcony doors for upper floors. The Sieger Slim Casement and Sieger HD Casement work well with this casement door to form a full glazing package that is cohesive and matching.

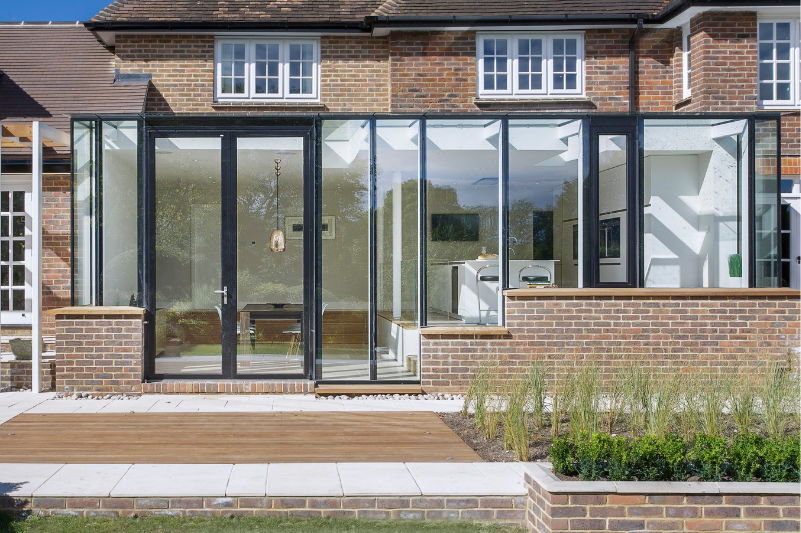

These aluminium casement doors can be created to very large opening sizes to fill wide openings. You can fill larger openings by including fixed side lights or fixed windows overhead.

Visit the show room in Amersham to see Sieger Systems in person, select framing finishes and see the ironmongery options.
